RollerNode™ Smart Home: Node-RED Introduction

Adrian Biffen, Senior Partner

As previously noted, the Raspberry Pi^® is a credit-card sized computer that enables people to explore computer programming for a very low cost. The Node-RED visual design system for home automation comes pre-installed with the default Raspbian operating system for the Pi. Node-RED can also be installed on any PC (Windows, Mac, etc.).

You can convert the Pi into a very effective, low cost home automation system with our BroadLink^® RF-IR hub, providing direct control with Node-RED of our roller blind motors, window openers, and many other devices.

Node-RED runs as a web server on your local network, and it can also be accessed from internet at a later time, if you wish. Voice control with Alexa™ can be easily added.

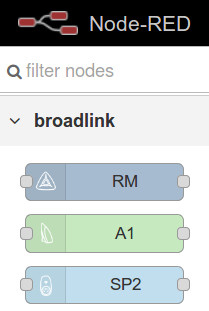

The picture at left shows a small portion of the extensive Node-RED palette, displaying some of the BroadLink^® node components. To start using these nodes, you just drag these components onto the design area - it is very easy to do!

The Node-RED Design Screen

This is a screen capture of what you might see when you point your browser to the Node-RED system (this is an Alexa FLOW for lighting):

There are 4 main elements visible:

• NODE component selector PALETTE panel on the left
• system DESIGN panel in the center (may have multiple tabs)
• interconnect WIRES connect NODES in DESIGN panel to create the FLOW
• information OUTPUT panel on right (showing feedback from NODE FLOW testing)

The 4 items above are the essence of the Node-RED system. A double click on a NODE in the DESIGN panel opens a dialog box to set PARAMETERS for that NODE.

Loading the Node Components for BroadLink™ & Alexa™

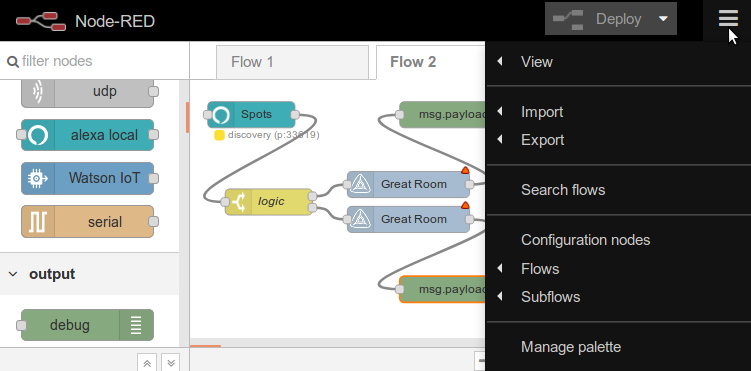

The picture below shows where the system menu is (note mouse pointer at top right). This menu allows you to add node components from the extensive Node-RED library, such as the BroadLink™ nodes, and to generally manage various aspects of the Node-RED system.

The "Manage palette" command is used to add (and remove) node components. To add the BroadLink™ node, you would search the library for "node-red-contrib-broadlink" and just click "Install" to load the nodes into the palette. This particular node set has been provided by a Node-RED user, Vladimir Filippov.

If the DASHBOARD tab is not displayed in the right hand panel, you can load the dashboard component by searching for "node-red-dashboard".

There are several ways to set up Alexa™ voice control, and we are chose a simple solution from a user in Singapore. The advantage is that it does not require an account setup with Amazon, or the setup of a "SKILL". You can go the SKILL route if you prefer, if you want a cloud-based solution, but there is a learning curve associated with it.

We are focused on providing a simple solution, and the Alexa node component we are using emulates the Philips HUE™ lighting system, which is already built into Alexa™. It does not require any complicated programming; to add this node, search the library for "node-red-contrib-alexa-local".

----------------------------------------------
