Contact PageZ-Wave & WiFi Group Control: Built-in Web Server: Group Configuration
In Part 4 had a look at the home page that appears after the web server is fired up.
One of the distinct advantages of having a built-in web server is the ability to control many different operational parameters.
As part of the original design concept, we wanted our customers to be able to use our Unity controller series for many types of situations that involve low voltage reversible DC motors.
Although our primary business model has been built around motorized blinds, we have other products that use reversible motors, and we wanted to make sure these can also be operated by Zwave and WiFi.
Some of the other systems we produce:
- Motorized Window Openers (these are ADA compliant)
- Motorized Skylight Openers (can be counter-balanced)
- Motorized ShadeSlider™ (for skylights and bottom-up windows)
- Motorized CurtainCloser™ (for center pull and right/left pull)
We made almost every aspect of the motor customizable, as you can see from the options below ...
Customizable Motor Control Fits Many Applications
CONFIGURE MOTOR GROUP - Custom SettingsYour IP is 192.168.1.7 |
|||
| # | Parameter | Comment | |
| 1 | Control Mode: | Choose between Z-Wave or WiFi | |
| 2 | *Full Excursion Time (OPEN): | seconds | Opening time can be |
| 3 | *Full Excursion Time (CLOSE): | seconds | different from closing time |
| 4 | Browser Tab Title: | (tip: keep it short) | See #4 in picture below |
| 5 | *Page Title: | See #5 in picture below | |
| 6 | Group Title: | See #6 in picture below | |
| 7 | Motor Name: | (tip: keep it short) | See #7 in picture below |
| 8 | 0% Position: | (tip: keep it short) | See #8 in picture below |
| 9 | 100% Position: | (tip: keep it short) | See #9 in picture below |
| 10 | Moving to 100% Position: | (tip: keep it short) | See #10 in picture below |
| 11 | Moving to 0% Position: | (tip: keep it short) | See #11 in picture below |
| 12 | *Detents: | discrete slider movements | |
| 13 | *Email Event: | Choose None, All, Toward 100%, Toward 0% | |
| 14 | *Email Address 1: | enter valid email address | |
| 15 | *Email Address 2: | 2nd address, could be email-to-text | |
| 16 | *Send Boot Email: | get boot email with IP address | |
| Copyright © 2017 - NodeSwitch Controls | |||

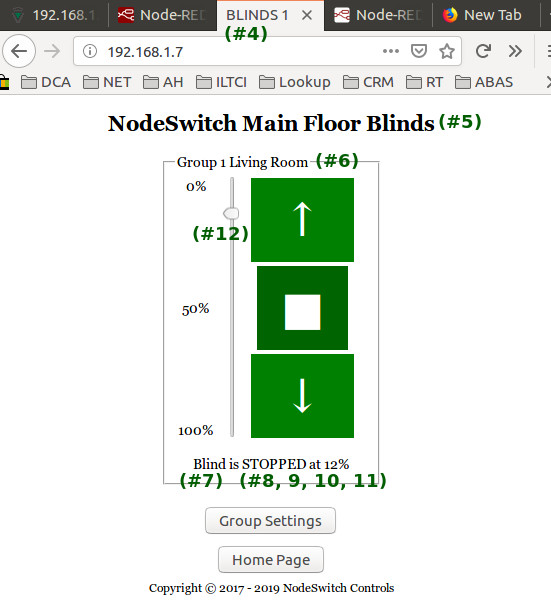

Slider For Blinds & Window/Skylight Opener (Key from table above)
Purchase This Unit in Our Online Store
You can purchase our Unity group controller for blinds and window openers, and our other control products in our online DIY automation store.
Adrian Biffen
Senior Partner
NodeSwitch™ Controls
We sincerely hope you enjoy our advanced technology products; if you have any questions, please contact us at any time!
